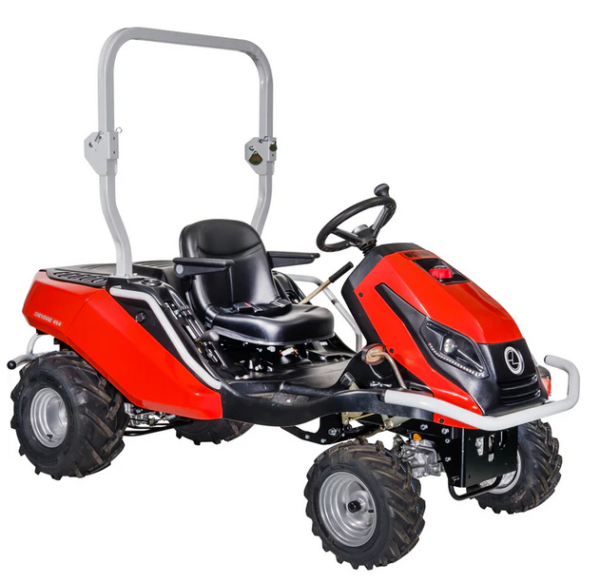

STAUB CHEYENNE 4x4 – Professional ride-on slope mower

The STAUB CHEYENNE 4x4 is a powerful and versatile ride-on slope mower for demanding, uneven, and heavily overgrown areas. With its 26 hp Kawasaki twin-cylinder engine, hydrostatic all-wheel drive, and various cutting decks, it is suitable for intensive mowing and mulching on areas of up to approx. 9,000 m² and slopes of up to 40% (22°).

Technical Data

• Engine: Kawasaki FS 730 V, 2-cylinder
• Displacement: 726 cm³
• Power: 26 hp
• Transmission: Hydrostatic, 4x4 all-wheel drive
• Differential lock: Standard
• Cutting deck: 92 / 110 / 132 cm, depending on version
• Cutting height: 40–135 mm
• Blades: Floating rotary blades
• Blade drive: Electromagnetic
• Max. slope: 40% / 22°
• Recommended area: up to approx. 9,000 m²
• Hour meter: Included

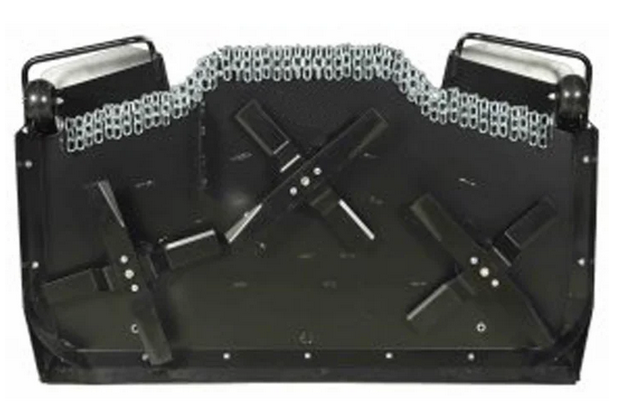

Interchangeable cutting decks

The CHEYENNE can be used with various cutting decks to suit different work requirements:

• 92 cm, 2 blades: Suitable for dense brush and demanding clearing work
• 110 cm, 3 blades: For tall grass and larger areas
• 132 cm, 3 blades: For particularly efficient work on large areas

The floating rotary blades can absorb shocks from stones, branches, and other obstacles, helping to protect the mechanics.

Features and benefits

The powerful Kawasaki FS 730 V engine delivers sufficient power for tall grass, blackberries, brush, and woody shoots. The combination of hydrostatic transmission, 4x4 drive, and differential lock ensures excellent traction on difficult surfaces.

The low center of gravity and high-grip tread tires ensure high stability on uneven terrain and slopes. At the same time, the compact design allows for good maneuverability.

The cutting height can be adjusted from 4 to 13.5 cm depending on the cutting deck used. This allows the machine to be flexibly adapted to different vegetation and terrain conditions.

Comfort and safety

For intensive use, the CHEYENNE is equipped with numerous comfort and safety features:

• Folding rollover protection
• Safety belt
• Front and rear bumpers
• Reinforced side guards
• Electronic dashboard
• Hour meter
• Headlights
• Ergonomic controls
• Flat footwell
• Reinforced chassis

Dimensions and weight

• With 92 cm cutting deck: approx. 235 × 104 × 174 cm / 390 kg
• With 110 cm cutting deck: approx. 235 × 116 × 174 cm / 401 kg
• With 132 cm cutting deck: approx. 235 × 136 × 174 cm / 419 kg

The STAUB CHEYENNE 4x4 is a professional solution for maintaining large properties, meadows, parks, forest paths, and heavily overgrown areas. The combination of a powerful engine, all-wheel drive, high stability, and interchangeable cutting decks makes it particularly versatile for demanding mowing and clearing work.
